Skid plates - bottom mounted skid plates

Same product, different cars

Xterra 05-15 Xterra 00-04 Pathfinder 05-12 Pathfinder 22-24 Frontier 05-24

Extended width skid plates

• 1) Trannsmission skid plate
• 2) Transfer Case skid plate
• Covers Catalytic converters and access to them
• Single Transfer case cat prototype skid plate is left
• Wide transfer case skid shown in stainless steel

Wide Skid #1 - Transmission

• wings are hiding but there
• 2 bolts shared with Engine plate on top
• 2 bolts shared with Transfer Case plate below

Showing wings

Wings closeup

• Right Angle bend

Wide Skid #2 - Transfer Case

• Covers side to side

Bolt mounting

• 5 bolts hold top, single bolt holds bottom
• all bolts go into existing holes, top 5 are threaded

Logo

• R logo is default

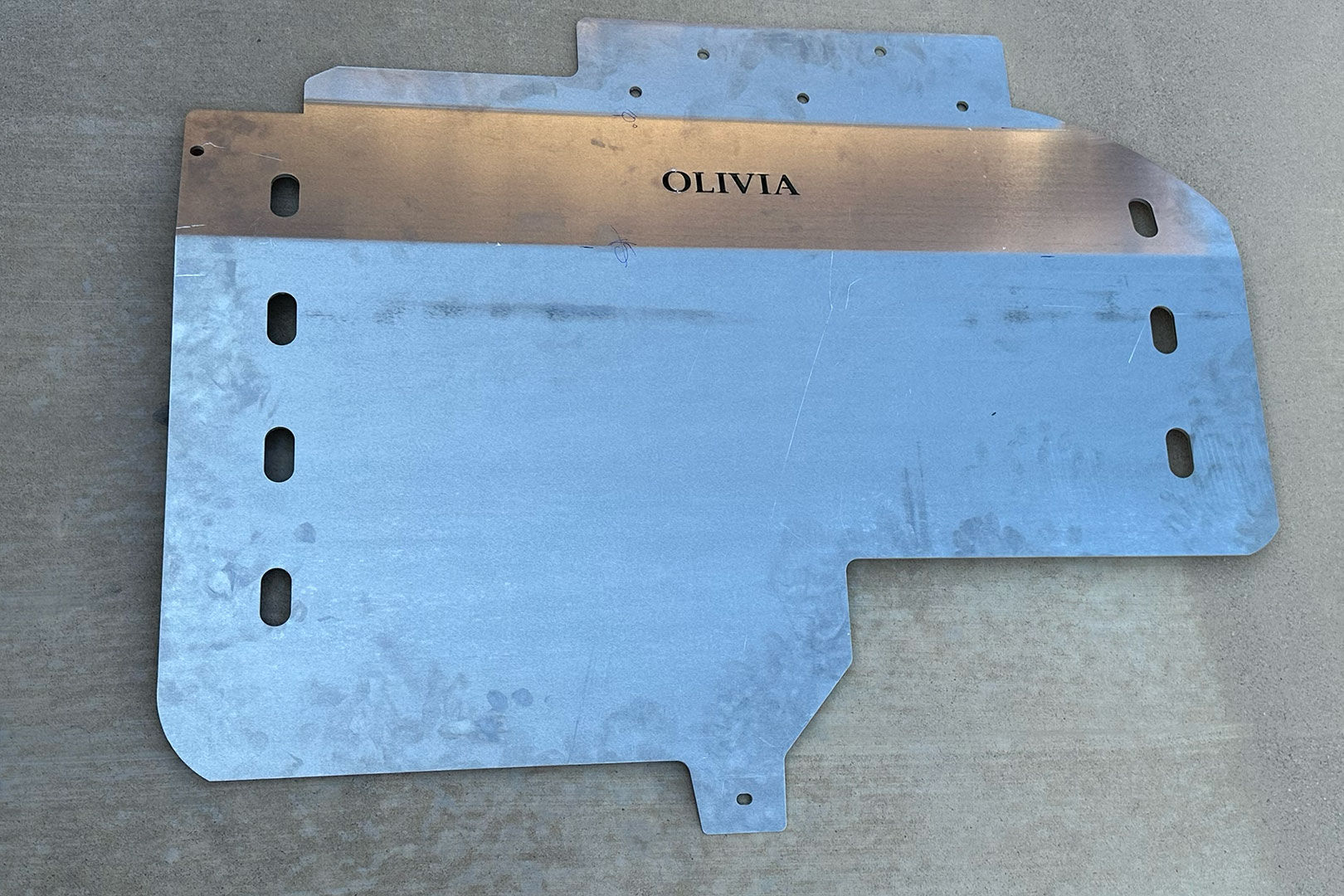

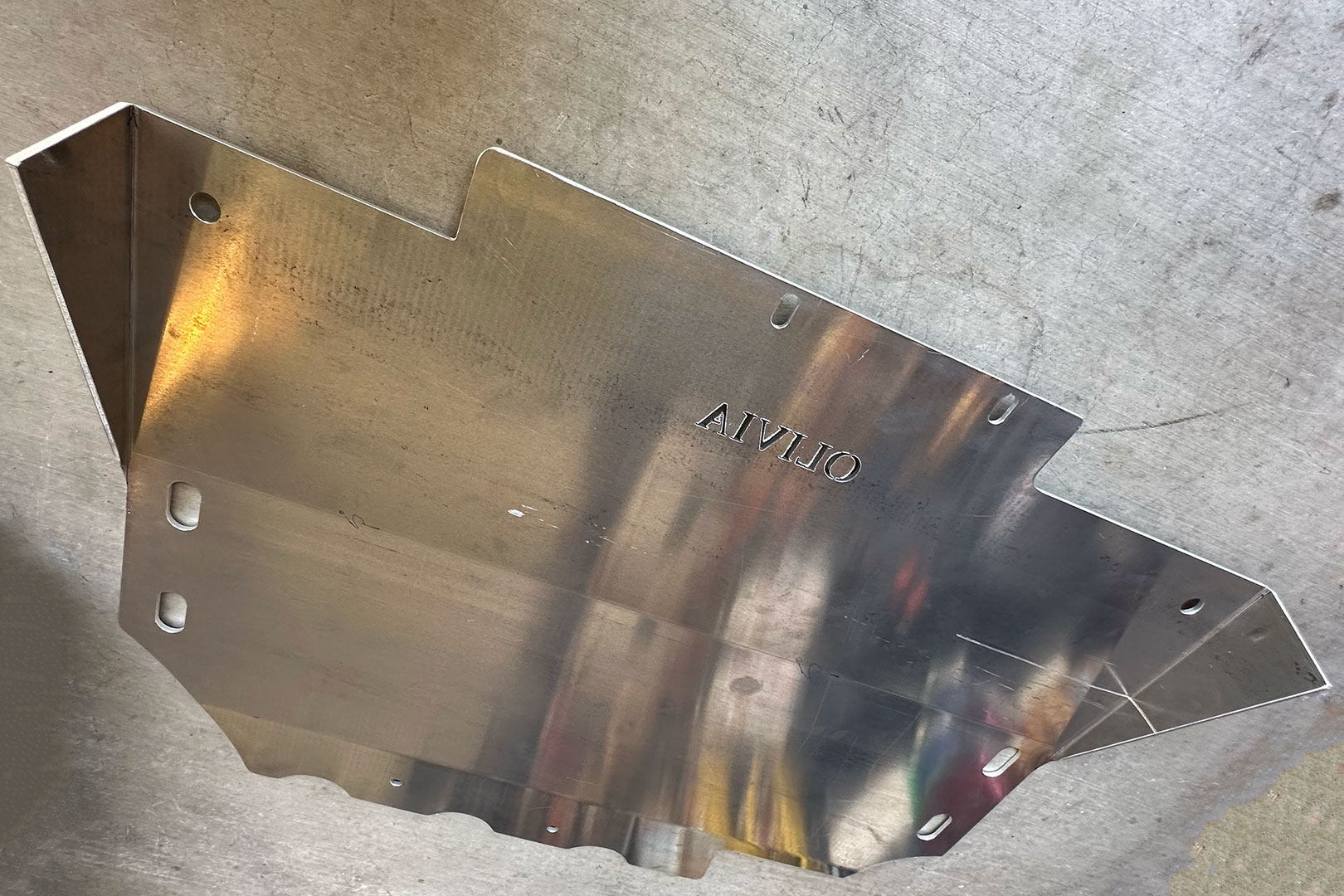

• Custom text as shown is extra

Wide CATS covering skids

• Safety bolts cost about $20 for a set of 10-20, they have a custom head
• Wide CATs covering skid plates
• Transmission skid covers 2 CATS
• Transfer Case skid covers 2 CATS

Stainless steel transfer case Wide

• In 3/16 inch stainless steel; without logo
• Wide version of transmission skid showing
• (on top of wide version of transfer case skid)
• near double the weight (and size) of regular transmission skid plate
• about double the weight of same alumininum skid in same thickness
• The oval holes are to help with heat dissipation, especiall since the skid covers side to side
• More info on Stainless steel page

Custom transmission skid

• Aluminum version of wide transmission skid
