• 2 aluminum prototypes are still available at lower price: Prototypes
• Includes mounting brackets and bolts
Xterra1 Skid
$
0

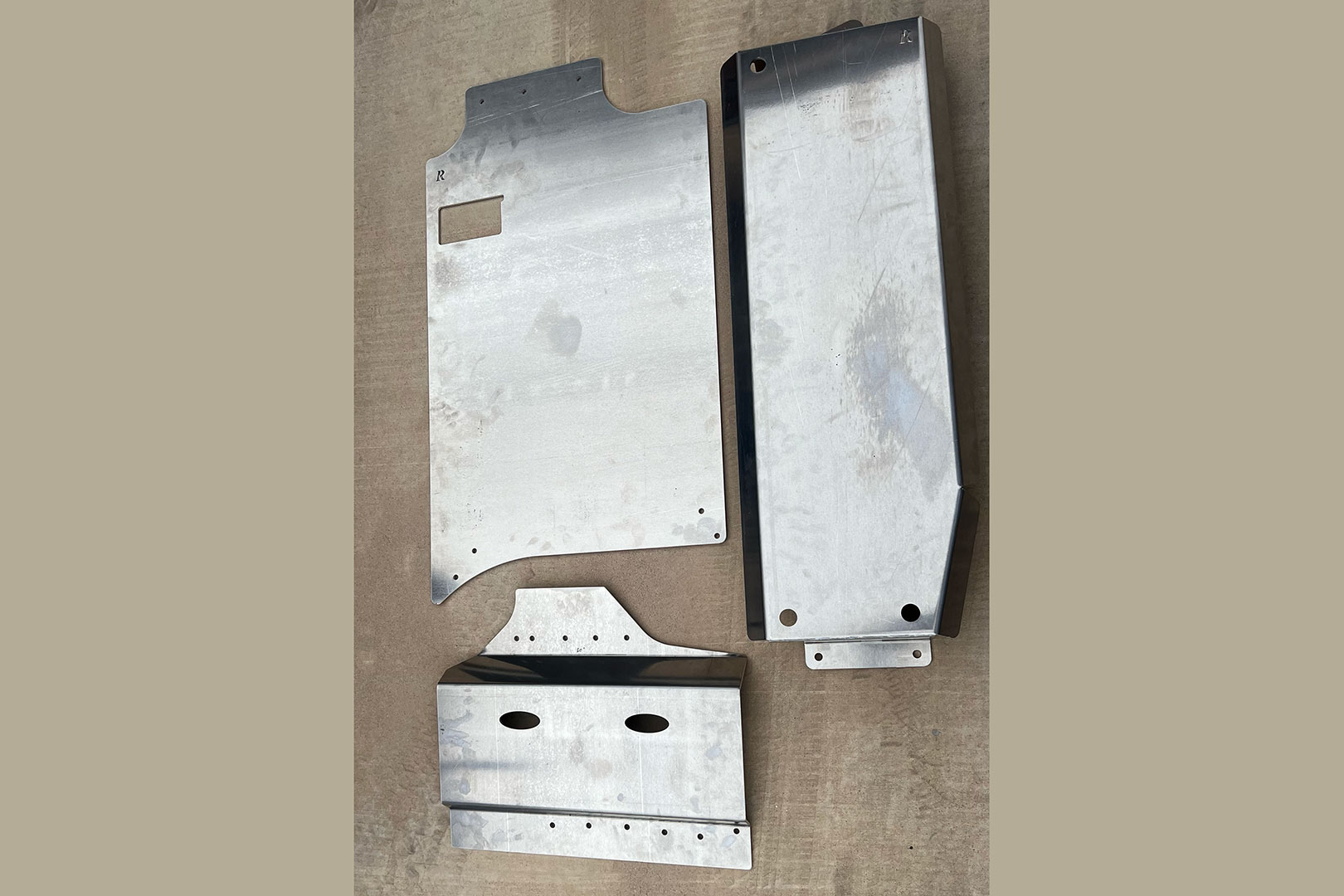

Skid Plates
• Fuel tank skid plate is by itself
• Engine/Transmission plate covers both of those areas in one skid plate
• Transfer case plate overlaps it at its end
Frame Mounts - plates overlap
• These 3 inch (plus handle) brackets slide into the hole in cross members to offer mounting points for 5/16 inch bolts
• Optionally (recommended) you can drill a 1/8 inch hole into the cross member to hold these brackets in place
• These brackets let both the Engine and the Transfer Case have mounting points where they overlap
• When laying/standing underneath, facing vehicle backwards, the left bracket goes on the left and the right bracket (after being flipped over) on the right
• The side with welded nuts is on the inside, the smooth face is facing th bolts being mounted
