Part 1: Brackets for power steering reservoir
Dual Battery trays
- hold dual batteries where single car battery was
1.Install bracket 2
Bottom of the bracket uses bolt with 10mm head, loosened from original power steering bracket

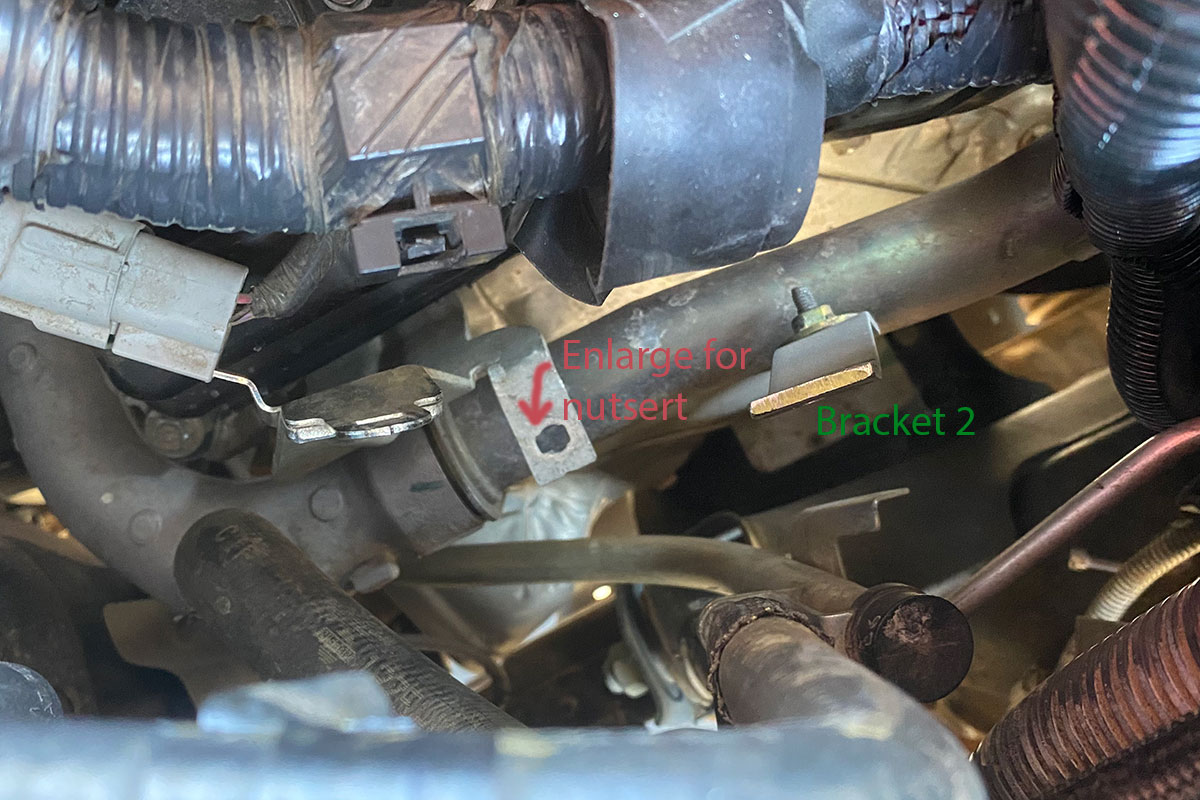

2a.Enlarge hole for nutsert for Bracket 1
Enlarge hole with 23/64 bit (just a 1/64 step above 3/8 inch)
Mount bracket 2 (bottom) using a 10mm head bolt loosed when moving the power steering reservoir
2b.Place nutsert into enlarged hole
2c.Closeup - Nutsert for Bracket 1, bottom mounted Bracket 2
use 1/4 inch nutsert (included with Deluxe package)
3.Mount Bracket 1
Insert bolt into bottom of Bracket 1 as shown, and fasten to the nutsert
Top of Bracket 2 can be seen
4.Mount Bracket 2 to original Power Steering bracket
5.Mount Bracket 1 to Bracket 2
Green shows the path of the final bolt

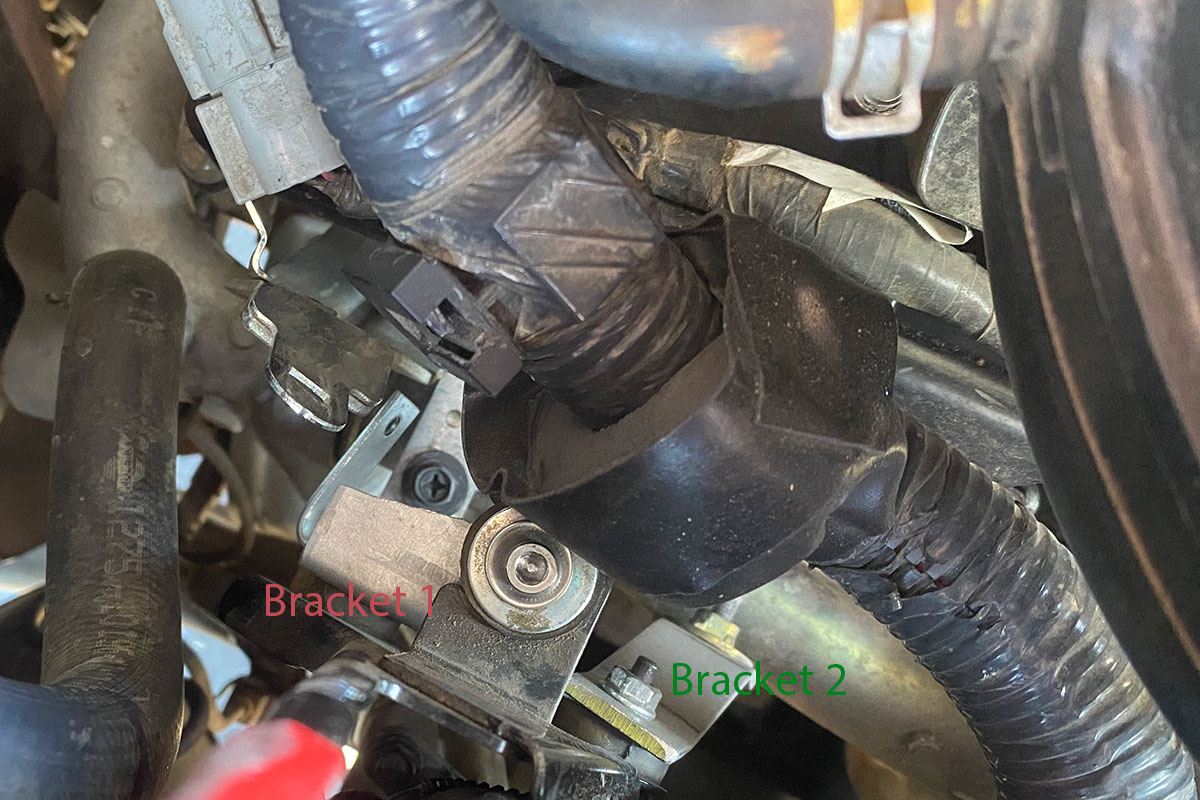

6.Bracket 1 and Bracket 2 installed
The 2 brackets connect to each other
Mounting for Bracket 1 and Bracket 2
Enlarge hole with 23/64 bit (just a 1/64 step above 3/8 inch)
Mount bracket 2 (bottom) using a 10mm head bolt loosed when moving the power steering reservoir
Bracket 1 angles - part 1
Different sides of Bracket 1 mounted
Bracket 1 angles - part 2
